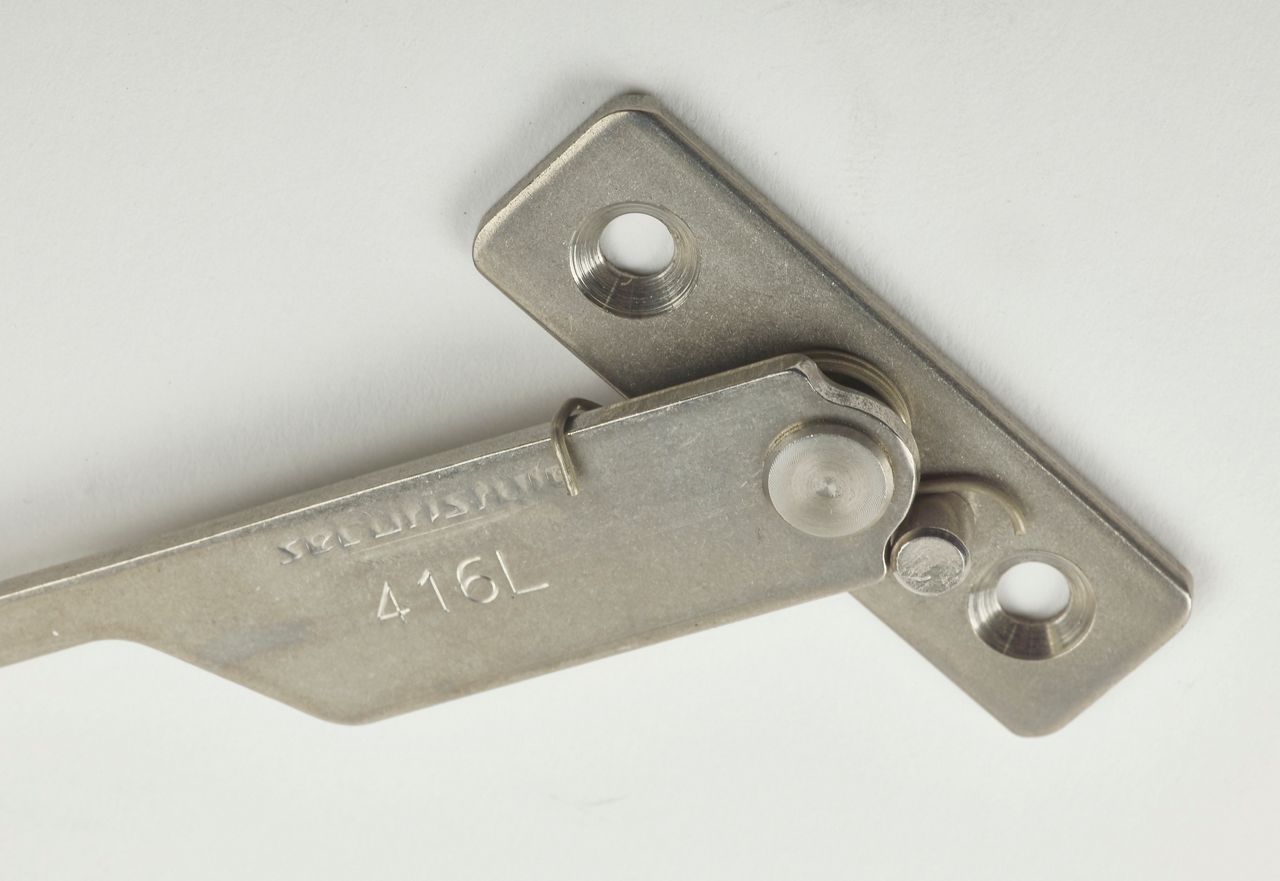

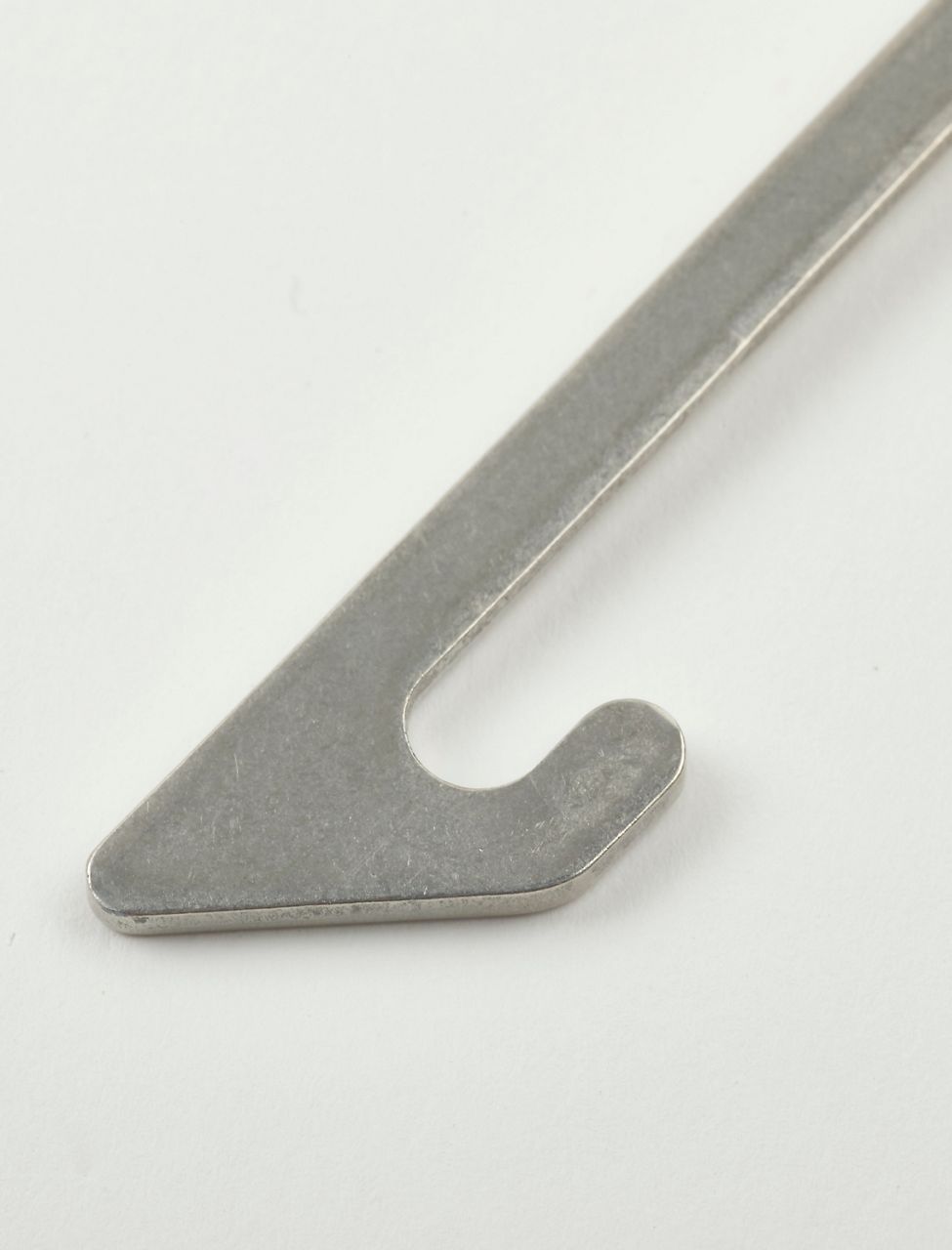

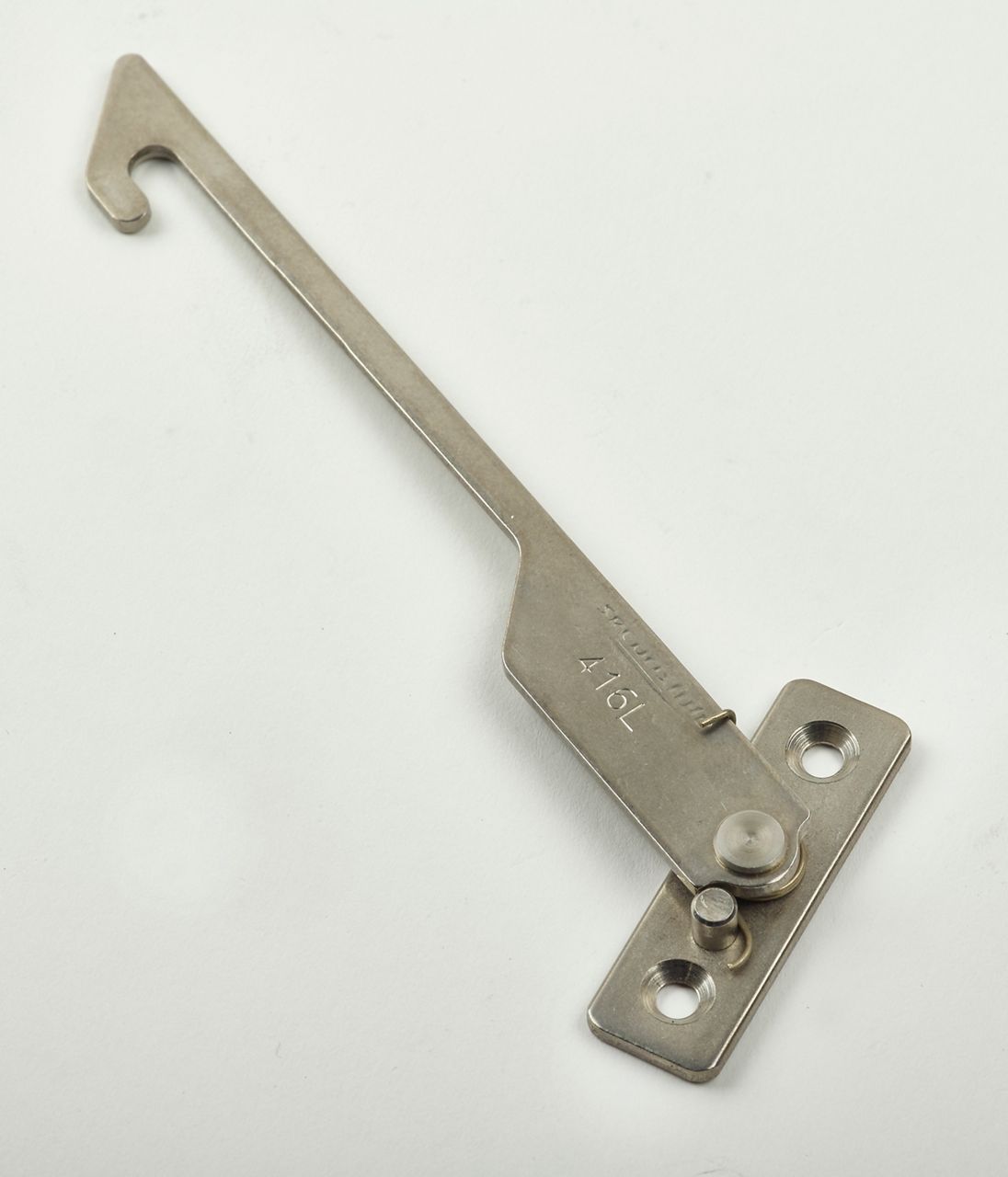

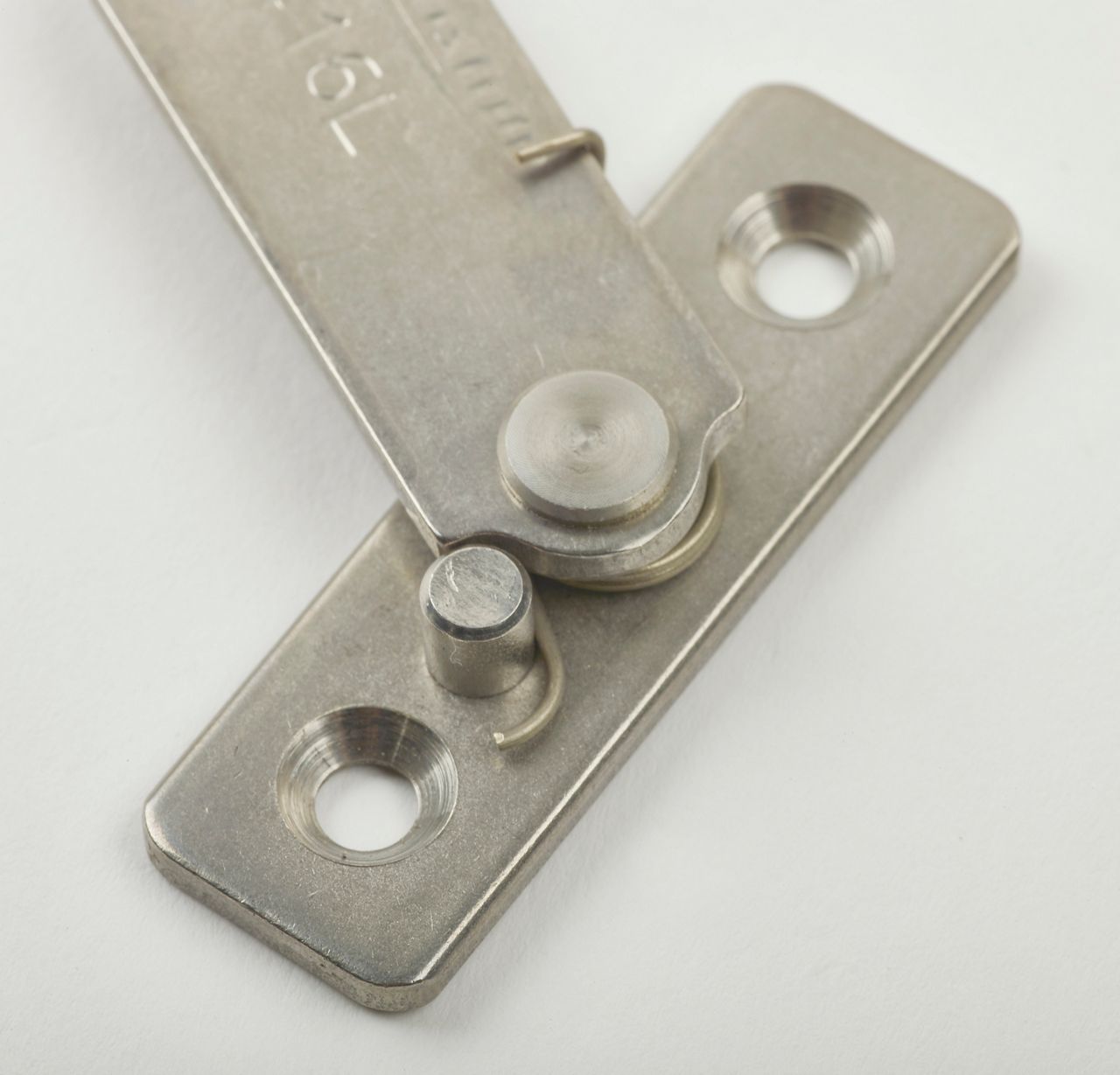

Cavity Fit Restrictor
- Healthcare
- Industry and manufacturing
- Entertainment and public facilities
The ultimate solution for resident safety.
Features
- Easy to fit with no routing
- Compatible with standard duty hinges
- Available in 13mm, 16mm, and 17mm cavity heights
- Compatible with countersunk fixings
- Can be used on windows without reinforcement
- Austenitic* stainless steel for enhanced corrosion resistance and strength
- 12 Year Guarantee (details available upon request)
- *Austenitic 304 stainless steel to BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance
?wid=40&qlt=40)
:1x1?wid=40&hei=40&qlt=40){kind=spacer}
:1x1?wid=40&hei=40&qlt=40){kind=spacer}
:1x1?wid=40&hei=40&qlt=40){kind=spacer}
:1x1?wid=40&hei=40&qlt=40){kind=spacer}
- Technical Information
Important Note: all separate restrictor variants have been tested and proven to comply with the relevant standards when tested on windows in conjunction with variable geometry friction stays produced by Securistyle. Should the products be used with other hinge types, it is the responsibility of the window fabricator or Systems Company to prove their suitability in use and compliance with relevant standards and/or legislation.
Part Code Description Cavity Size (Dim 'A') Pin Height (Dim 'B') Restrictor Length (Dim 'C') Box Quantity RC1L Cavity Restrictor LH 66mm - - 65.5mm 25 RC1R Cavity Restrictor RH 66mm - - 65.5mm 25 RC2L Cavity Restrictor LH 116mm - - 115.5mm 25 RC2R Cavity Restrictor RH 116mm - - 115.5mm 25 RC3L Cavity Restrictor LH 166mm - - 165.5mm 25 RC3R Cavity Restrictor RH 166mm - - 165.5mm 25 SC1 Locator Pin 13mm 13-14mm 9.5mm - 25 SC2 Locator Pin 16mm 16-17mm 13.5mm - 25 SC3 Locator Pin 17mm 17-18mm 14.5mm - 25 SC4 Locator Pin 13mm 13-14mm 11.5mm - 25
