Defender Egress Easy Clean
- Residential
- Industry and manufacturing
- Entertainment and public facilities
The ideal solution for emergency egress with the easy clean function helping to provide ease of use to the occupant.
Features
- 16” hinge opens to a full 90° for emergency exit
- Self-lubricating PTFE based coating on the end cap to provide a smooth closing
- Composite slider with stainless steel release lever mechanism allows cleaning access from the inside of the building
- Automatically resets to the fire escape mode when the window is closed
- Die-cast support plate in the bottom slider ensures consistent performance
- Available in 12” or 16” for side hung windows
- Drilling jigs for all sizes are available to order
- Screw fixing in the center of the track to reduce vent drop
- Available in ferritic 430 as standard or austenitic 304 stainless steel for enhanced corrosion resistance

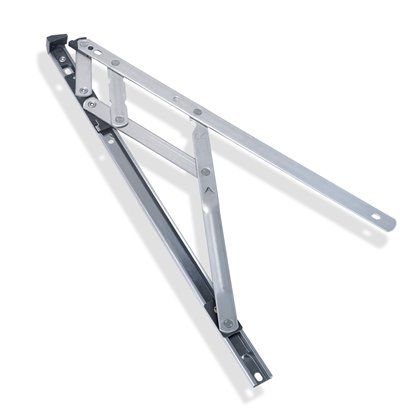

Defender Egress
Specifications - Vent Size and Weight Chart - DEFENDER Egress/Easy Clean Hinges
Hinge Code - (Top Hung) Max.Vent Weight
(Kg)
Min.Vent Width
(mm)
Max.Vent Width
(mm)
Opening Angle
(+/-2.5°)
EDSE12 22 300 600 80° EDSE16 24 400 700 90° Note: Vent height/width is measured from rebate to rebate (not overall size or outer frame size) on conventional windows or glass size on structurally glazed windows e.g. curtain wall panels whichever is the greater dimension. For maximum vent height and widths not stated, consult profile manufacturers for recommendations on requirements of system strength and sealing.
Note: Above sizes/weights also apply to DEFENDER Egress/Easy Clean Hinge Variants - H6.H7 (Highline).
