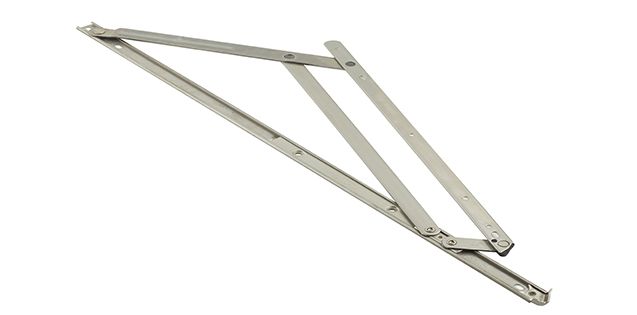

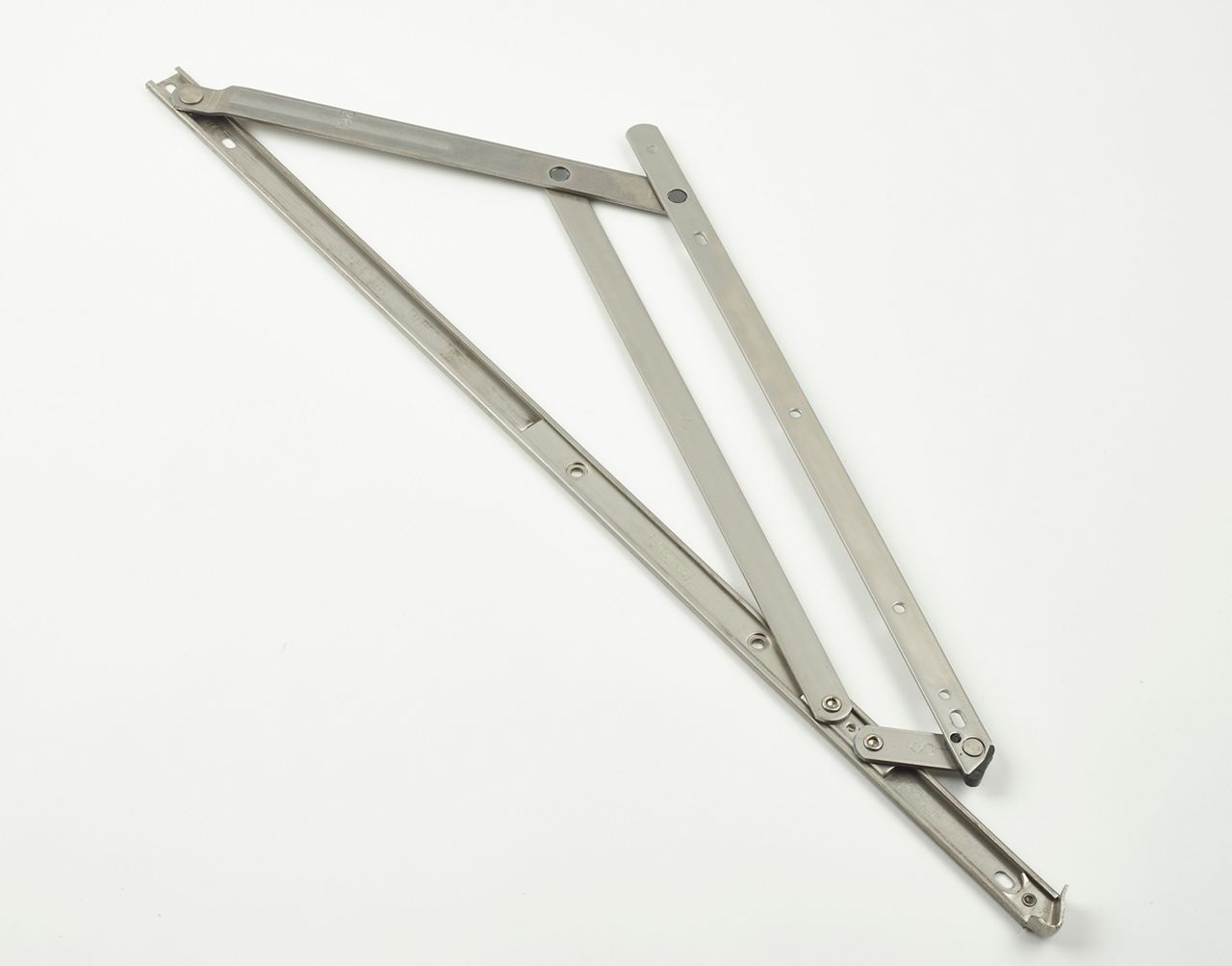

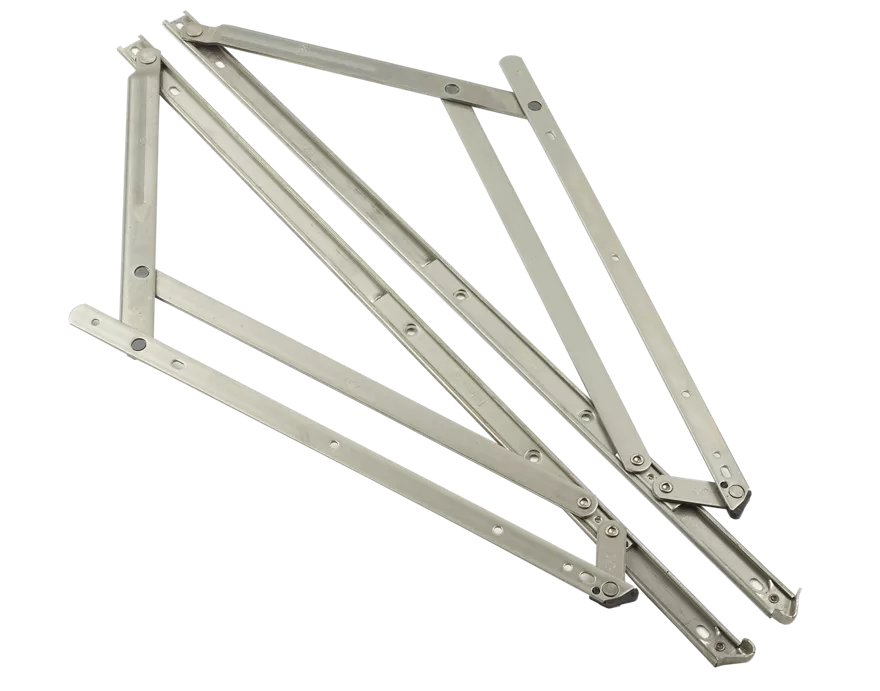

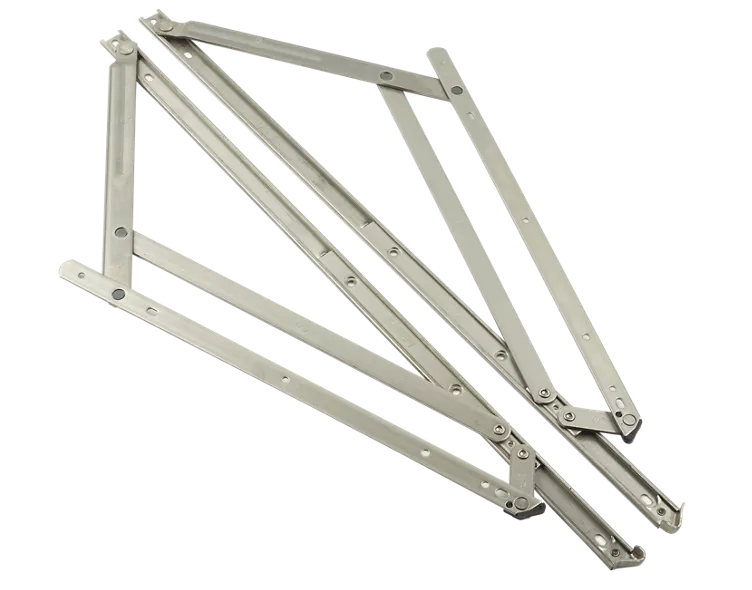

A superior self-balancing hinge range with unrivalled weather sealing provides natural ventilation on projecting top and side hung windows
Features
- Can be used on top hung vents up to 180kg and 2.5m high
- Can be used on side hung vents up to 55kg and 0.84m wide
- Full Technical and Sales Support available
- Manufactured from Austenitic* stainless steel for high corrosion resistance
- 12 Year Guarantee (details available upon request)
- Standard and offset variants are available
- Suitable for 16mm-18mm hardware cavity
- Adjustable maximum opening stop in all top hung hinges

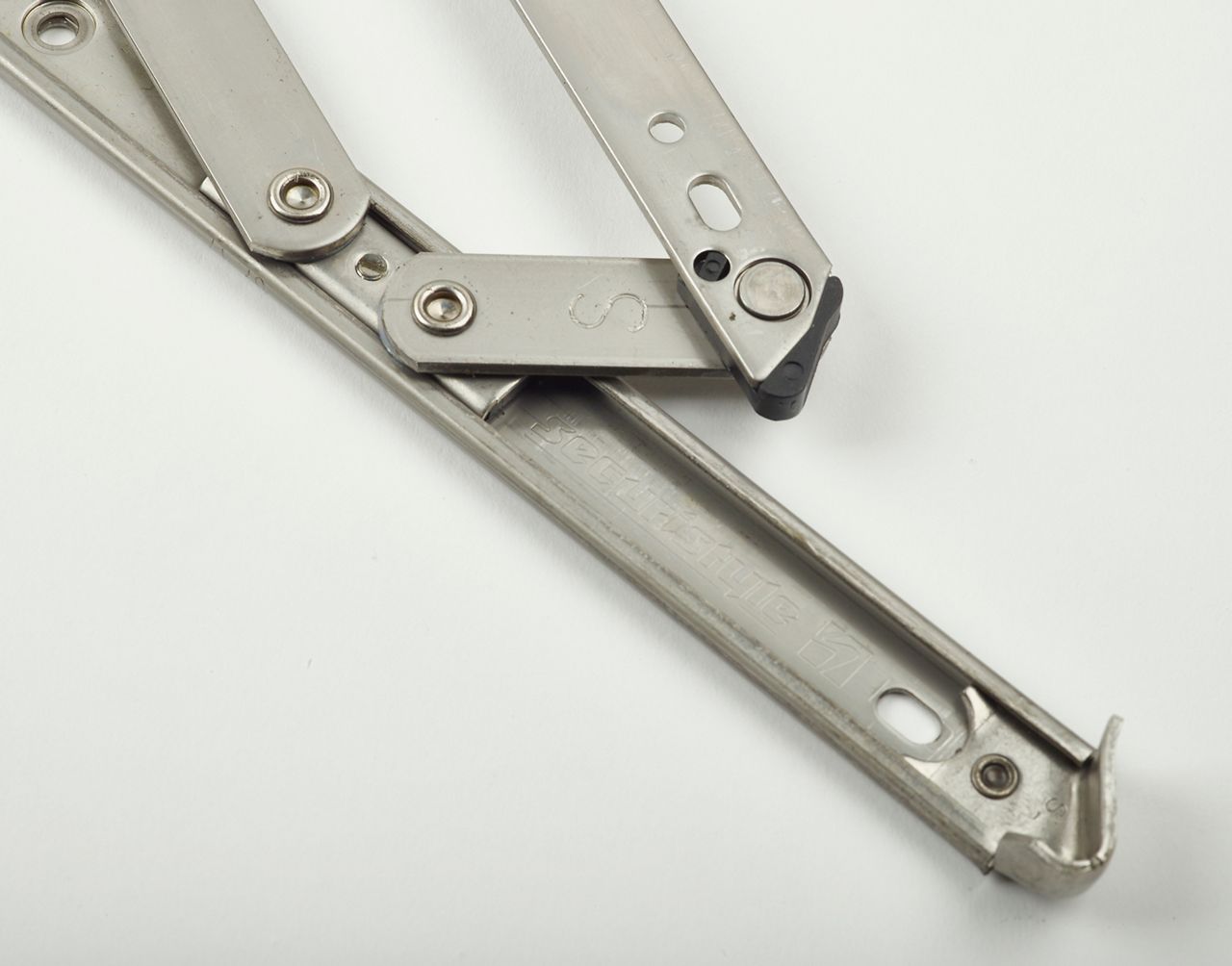

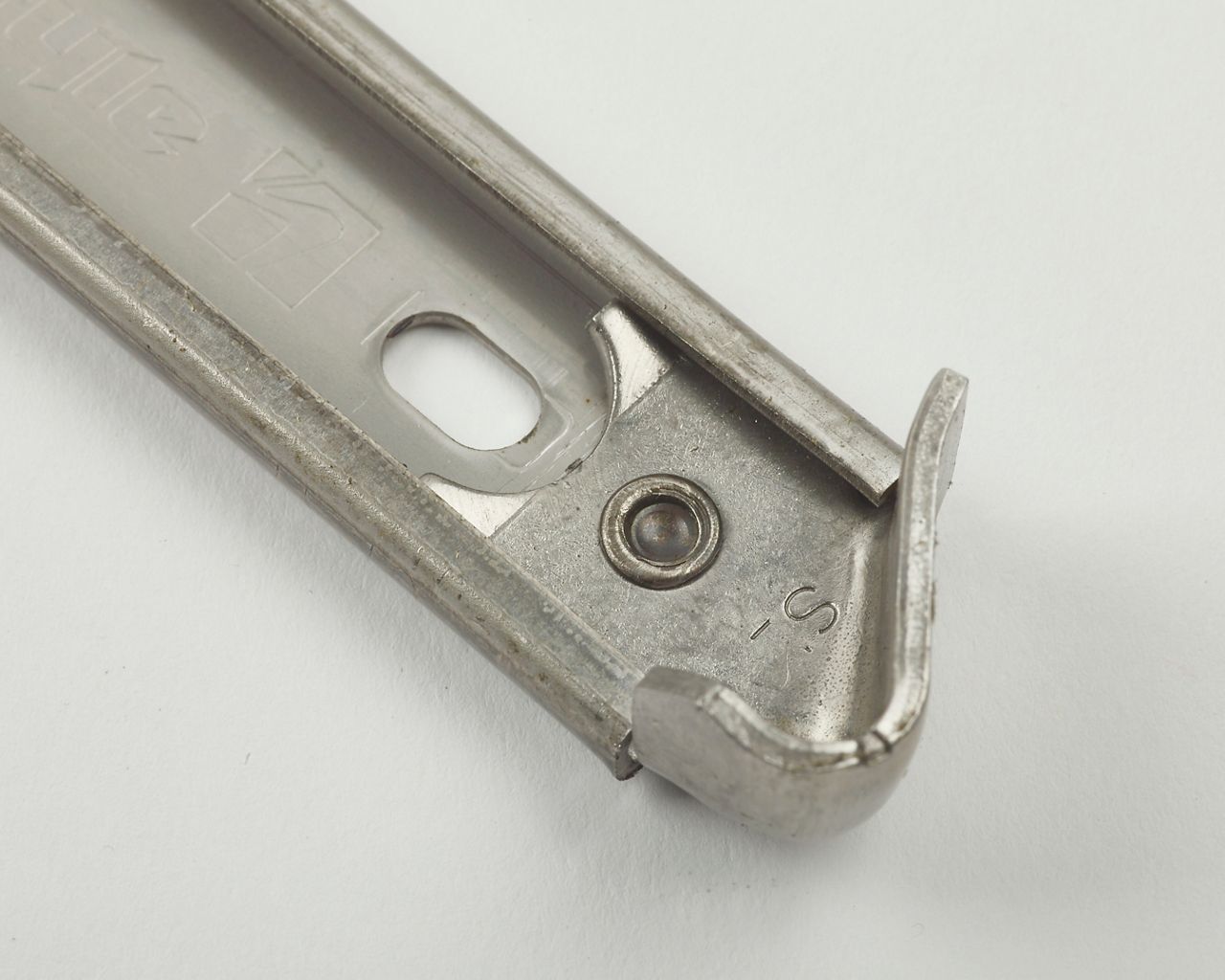

- Asymmetric stainless steel end cap combined with the plastic endpoint to eliminate metal to metal contact for superior durability and strength

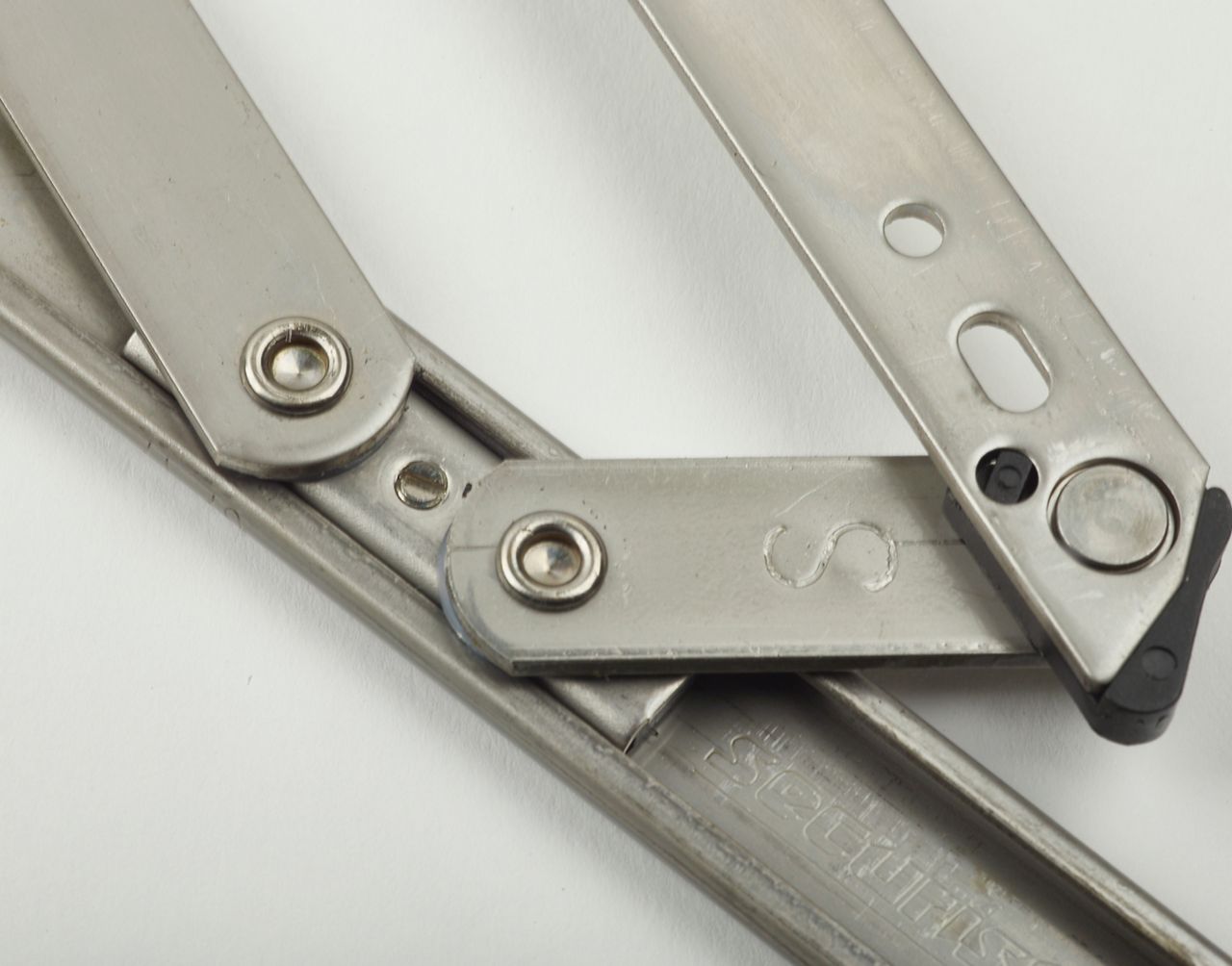

- Composite stainless steel and plastic slider for strength and maximum wear resistance
- Coated pivot rivets for enhanced wear resistance and long life expectancy
- Optional cam adjustment device to aid final on-site alignment of heavy top hung vents
*Austenitic 304 stainless steel for high corrosion resistance.
2?wid=40&qlt=40&fmt=png-alpha)
2:1x1?wid=40&hei=40&qlt=40&fmt=png-alpha){kind=spacer}
3-1:1x1?wid=40&hei=40&qlt=40){kind=spacer}
4:1x1?wid=40&hei=40&qlt=40){kind=spacer}
5:1x1?wid=40&hei=40&qlt=40){kind=spacer}
_637x315:1x1?wid=40&hei=40&qlt=40){kind=spacer}
%201:16x9?wid=40&hei=23&qlt=40)
12 year Guarantee
Hinge Code -
(Top Hung)
Max.Vent Weight
(Kg)
Min.Vent Height
(mm)
Max.Vent Height
(mm)
Max.Vent Width
(mm)
Opening Angle
(+/-2.5°)
SPT10 40 267 635 - 50° SPT12 50 635 787 - 50° SPT16 & SPT16W 65 787 1090 - 50° SPTH16* 100 600 1100 - 30° SPT22* 100 1090 1500 - 45° SPT22W* 100 1500 2000 - 20° SPT26* 180 2000 2500 20° Hinge Code -
(Side Hung)
Min.Vent Width
(mm)
SPS10 38 300 - 660 85° SPSH16 55 450 - 838 60° Note: Vent height/width is measured from rebate to rebate (not overall size or outer frame size) on conventional windows or glass size on structurally glazed windows e.g. curtain wall panels whichever is the greater dimension. For maximum vent height and widths not stated, consult profile manufacturers for recommendations on requirements of system strength and sealing.
Note: *Vents of 100Kg or higher must be fitted with S7280 Cam adjustment devices which are optional on lighter vents.
Note: Separate restrictors (SR8 or SR16 pair), vent holding devices or an operating mechanism maybe required to hold large vents in a selected ventilation position against variable wind pressure.
Note: As with all types of friction hinges friction cannot be provided until the slider moves, therefore when limiting the opening top hung vents to angles of 10° or less, additional separate device(s) will be required on top hung vents to enable them to remain in a selected ventilation position.
Note: Above sizes/weights also apply to BX (Sterling Offset series)
