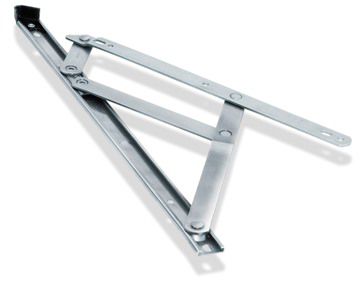

A self-balancing hinge range achieving high gust loading performance on projecting top and side hung windows.
- Can be used on top hung vents up to 120kg and 2.2m high
- Can be used on side hung vents up to 47kg and 0.84m wide
- Full Technical and Sales Support available
- Manufactured from Austenitic* stainless steel for high corrosion resistance
- 12 Year Guarantee (details available upon request)
- Standard, offset, and egress variants are available
- Suitable for 16mm-18mm hardware cavity

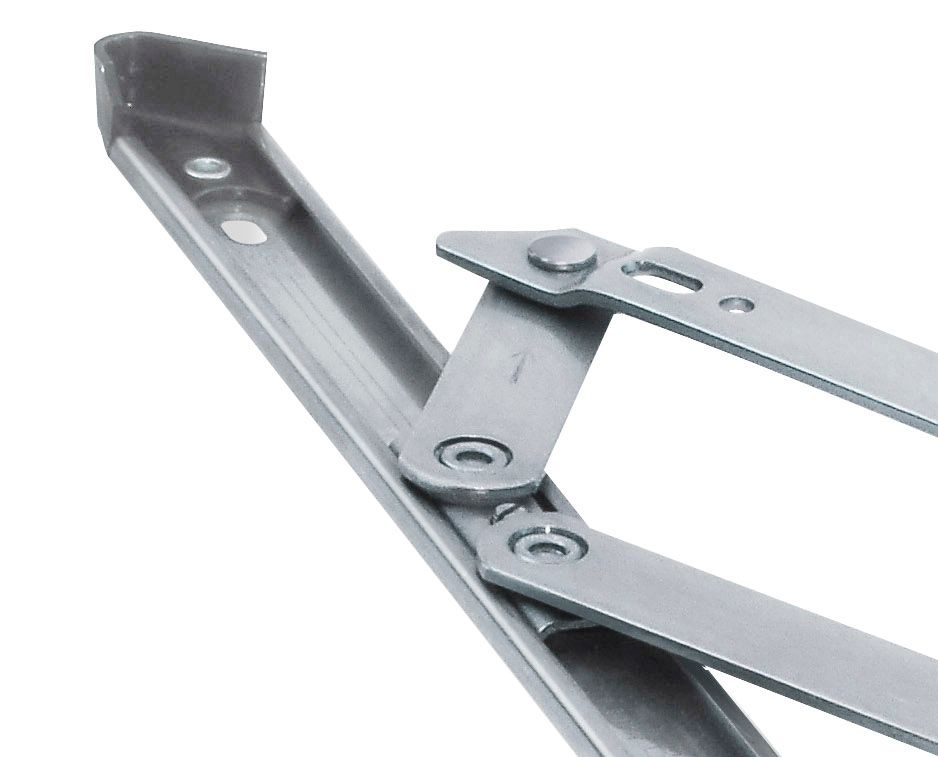

- Asymmetric stainless steel end cap and endpoint provide superior gust load resistance
- Composite stainless steel and plastic slider for strength and maximum wear resistance
- Optional cam adjustment device to aid final on-site alignment of heavy top hung vents
*Austenitic 304 stainless steel for high corrosion resistance
Storm
Specifications - Imperial Vent Size and Weight Chart - STORM Hinges
Hinge Code Awning
Projecting
Max.Vent Weight
(lb)
Min.Vent Height
(in)
Max.Vent Height
(in)
Max.Vent Width
(in)
Opening Angle
(+/-2.5°)
STORMB10 81 10.5 25 - 50° STORMB12 99 25 31 - 50° STORMB16 121 30.9 42.9 - 50° STORMB22 165 42.9 59 - 45° STORMB26 264 50 87 - 20° Hinge Code
Casement
Min.Vent Width
(in)
STORMBS10 83.6 11 - 26 80° STORMBS16 103 18 - 33 80° STORME16 103 18 - 33 90° Note: Vent height/width is measured from rebate to rebate (not overall size or outer frame size) on conventional windows or glass size on structurally glazed windows e.g. curtain wall panels whichever is the greater dimension. For maximum vent height and widths not stated, consult profile manufacturers for recommendations on requirements of system strength and sealing.
Note: *Vents of 220 lb or higher must be fitted with S7280 Cam adjustment devices which are optional on lighter vents.
Note: Separate restrictors (SR8 or SR16 pair), vent holding devices or an operating mechanism maybe required to hold large vents in a selected ventilation position against variable wind pressure.
Note: As with all types of friction hinges friction cannot be provided until the slider moves, therefore when limiting the opening top hung vents to angles of 10° or less, additional separate device(s) will be required on top hung vents to enable them to remain in a selected ventilation position.
Note: Above sizes/weights also apply to BX (Sterling Offset series)
Note: For loose rivet versions, used with opening devices please contact Securistyle for advice on maximum sizes and weights.
Metric Size and Weight Chart - STORM Hinges Hinge Code Awning
Projecting
Max.Vent Weight
(Kg)
Min.Vent Height
(mm)
Max.Vent Height
(mm)
Max.Vent Width
(mm)
Opening Angle
(+/-2.5°)
STORMB10 37 267 635 - 50° STORMB12 45 635 787 - 50° STORMB16 55 787 1090 - 50° STORMB22 75 1090 1500 - 45° STORMB26 120 1270 2200 - 20° Hinge Code
Casement
Min.Vent Width
(mm)
STORMBS10 38 280 - 665 80° STORMBS16 47 457 - 838 90° STORME16 47 457 - 838 90° Note: Vent height/width is measured from rebate to rebate (not overall size or outer frame size) on conventional windows or glass size on structurally glazed windows e.g. curtain wall panels whichever is the greater dimension. For maximum vent height and widths not stated, consult profile manufacturers for recommendations on requirements of system strength and sealing.
Note: *Vents of 100 Kg or higher must be fitted with S7280 Cam adjustment devices which are optional on lighter vents.
Note: Separate restrictors (SR8 or SR16 pair), vent holding devices or an operating mechanism maybe required to hold large vents in a selected ventilation position against variable wind pressure.
Note: As with all types of friction hinges friction cannot be provided until the slider moves, therefore when limiting the opening top hung vents to angles of 10° or less, additional separate device(s) will be required on top hung vents to enable them to remain in a selected ventilation position.
Note: Above sizes/weights also apply to BX (Sterling Offset series)
Note: For loose rivet versions, used with opening devices please contact Securistyle for advice on maximum sizes and weights.
